Daizuki Quad Zone Mini Split: Comfort for Four Spaces

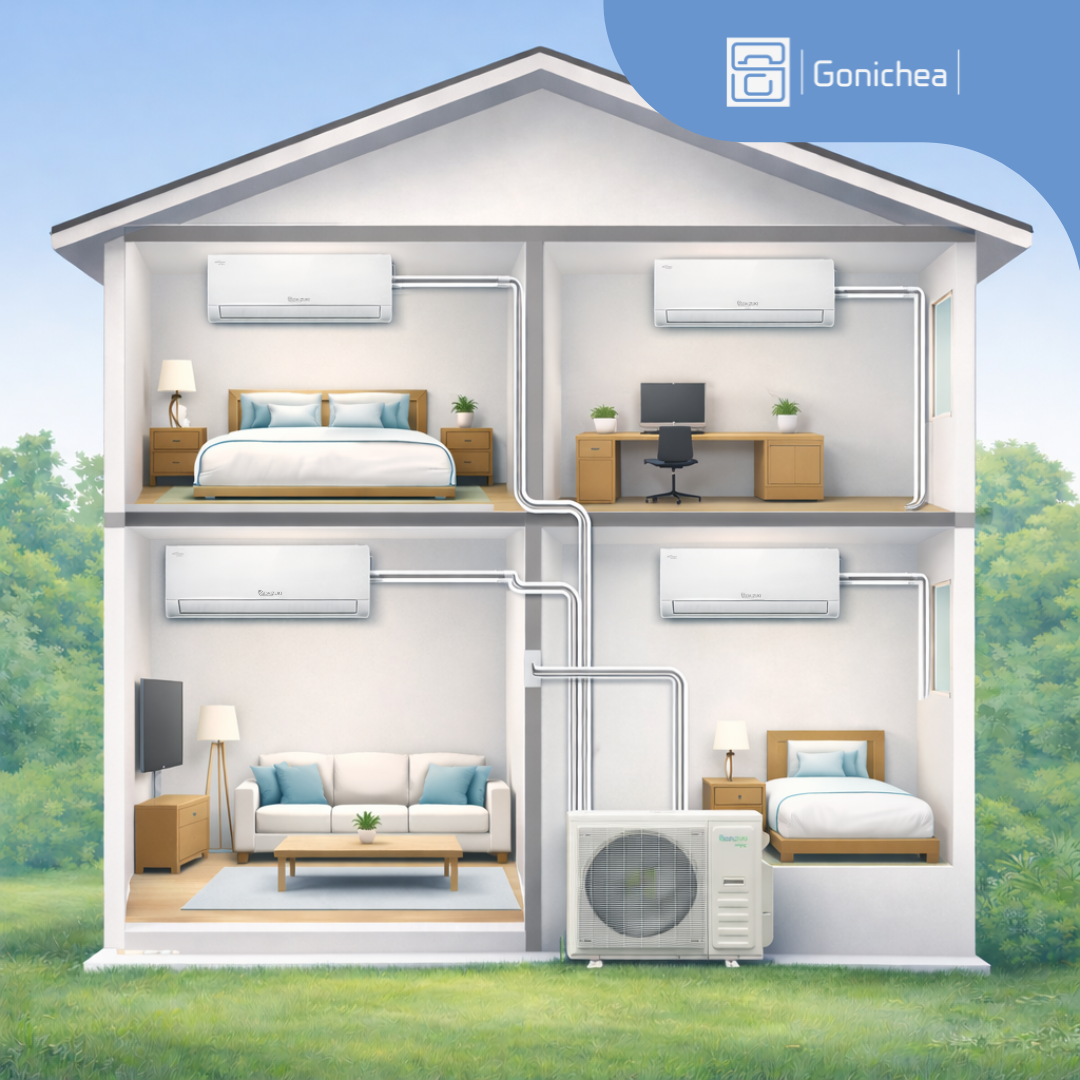

Keep four rooms perfectly comfortable year-round with a reliable system. The Daizuki Quad Zone Inverter Mini Split offers powerful heating and cooling, built-in Wi-Fi smart control, and high efficiency to help reduce energy costs.
With a 7 years warranty on the compressor and 5 years in the parts (with registration), it's the smart choice for lasting comfort and peace of mind.
Item Specifications
Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (if applicable).
AHRI:
AHRI & ENERGY GUIDE
Estimated Annual Operating Costs:
ENERGY INFO
Brand: Daizuki
Type: Quad Zone Ductless Mini Split System
Certificacions: AHRI, ETL
Refrigerant Type: R-454B
SEER Rating: 22.5 SEER2

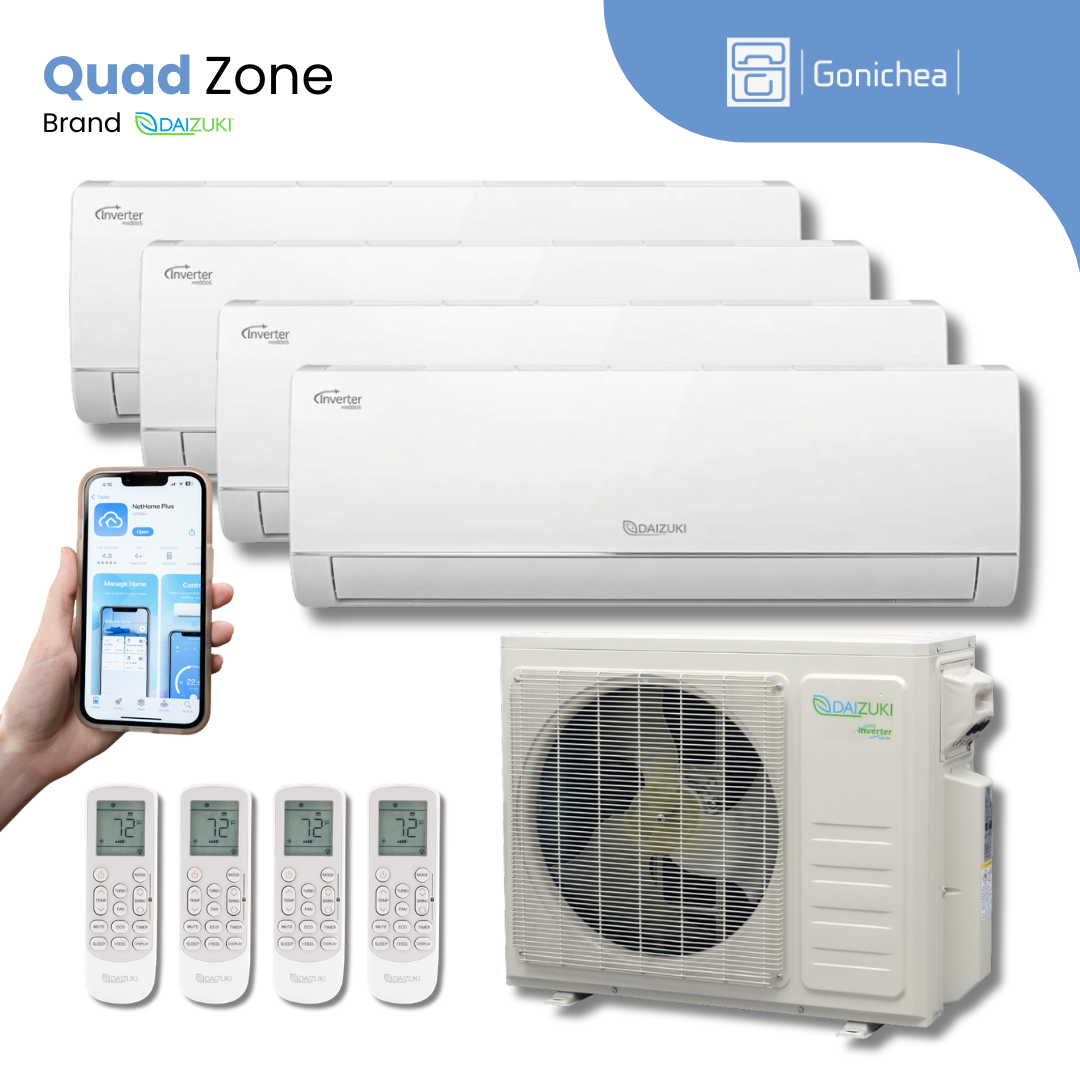

Smart Home Protocol Wi-Fi
Number of Cool Speeds Variable
Timer Control 24 Hours
Number of Fan Motors: 1
System Configuration Multi-Positional
Blower Motor Speed Multi Speed High Efficiency
Power Source Corded Electric
Items Included Drain Hose, Remote Control
Number of Compressors 1
Year Manufactured 2025
Smart Home Compatibility Amazon Alexa, Google Assistant, Google Home/Assistant, IFTTT, Samsung SmartThings
HSPF2 (Region IV) 10
Power Phase 1 Phase
Control Style App Control, Digital, Remote Control
Number of Zones 4
BTU Cooling Rating 36000 BTU
Capacity 36000 BTU
Energy Efficiency Ratio (EER2) 11.1
Manufacturer Warranty: 7 years warranty on the compressor and 5 years in the part
Voltage 208/230 V
Features Adjustable Humidistat, App Compatibility, Auto Cool, Automatic Shut Off, Dehumidifier, Digital, Digital Display, Drain Hose Connection, Eco-Friendly, Fan Only Option, Humidifier, Humidity Resistant, Indoor/Outdoor, Programmable, Sleep Mode, Smart Connectivity, Timer, Waterproof
Finish Glossy
Compressor Type Rotary & Impeller
Color White
Material Copper, Metal, Plastic
Tonnage 3.0 tons
Indoor Ambient Cooling (°F): 61~86
Indoor Ambient Heating (°F): 61~86
Outdoor Ambient Cooling (°F): 5~131
Outdoor Ambient Heating (°F): -13~86
Compressor Model DXFMT-3624-4Z
- Gross weight: 169.80 LB
- Net weight: LB
- Product dims (in): 33.58 x 42.28 x 18.42
-
Box dims (in): 38.18 x 44.68 x 20.86
- Rated Current Cooling (A): 13.1
- Rated Current Heating (A): 12.0
- Rated Power Input Cooling (W): 2930
- Rated Power Input Heating (W): 2680
- Max. Fuse Size (A): 35
Indoor Wall Mounted Units
Model: DXMHT09E424-24 (9000Btu)
- Gross weight: 25.10 LB
- Net weight: 20.70 LB
- Product dims (in): 12.05 x 32.28 x 7.68
-
Box dims (in): 14.96 x 35.02 x 10.43
- Indoor Airflow (CFM): 326/282.5/235/188/153
- Noise Level (Turbo/Hi/Mi/Lo/Mute) dB(A): 43/40/33/31/30
Model: DXMHT12E424-24 (12000Btu)
- Gross weight: 30.90 LB
- Net weight: 23.10 LB
- Product dims (in): 12.05 x 36.22 x 7.68
-
Box dims (in): 14.96 x 38.98 x 10.43
- Indoor Airflow (CFM): 500/470/411/323/205
-
Noise Level (Turbo/Hi/Mi/Lo/Mute) dB(A): 46/44/36/32/30
Model: DXMHT18E424-23 (18000Btu)
- Gross weight: 35.30 LB
- Net weight: 30.90 LB
- Product dims (in): 13.07 x 43.18 x 8.74
- Box dims (in): 15.97 x 45.87 x 11.61
- Indoor Airflow (CFM): 735/676/529/423/394
-
Noise Level (Turbo/Hi/Mi/Lo/Mute) dB(A): 50/47/43/38/34
Warranty Coverage
Gonichea, a distributor of Daizuki products throughout the United States, offers you this comprehensive warranty. We are committed to ensuring your satisfaction and providing you with peace of mind with our high-quality products.
While registration is not required for the Basic Warranty, we strongly recommend that you register your product as soon as possible to access all the benefits of our Standard Warranty. You have up to 60 days after purchase to register your equipment. If you do not register within this timeframe, coverage will remain at 1 to 7 years, depending on the product purchased.
Standard Warranty: This multi-zone, flexible-mount model from the DXFMT series (outdoor unit) and the DXMHT series (indoor unit), ductless, high-efficiency inverter air conditioner (22.5 SEER2) from Daizuki has a 7-year compressor warranty and a 5-year parts warranty.
Basic Warranty: 1-year compressor warranty and 1-year parts warranty. This applies if the system is not registered within 60 days of purchase.
Warranty Policy
https://cdn.shopify.com/s/files/1/0299/6063/4413/files/Daizuki-Warranty-Terms_Multizonas.pdf?v=1772496127
Product Registration
https://daizuki.com/warranty-registration//
Manuals
User's Manual & Installation Manual
