Sold by Gonichea, the exclusive distributor of Premium Levella brand air conditioning products throughout the United States.
Great Unit!!!! Pre-Charge. Installation Kit Included. AHRI & ETL Certifications. WIFI Included. Seven Years Warranty in Compressor Five Years in Parts.
Summary
- Brand: Premium Levella
- Model: PIAW932580X
-

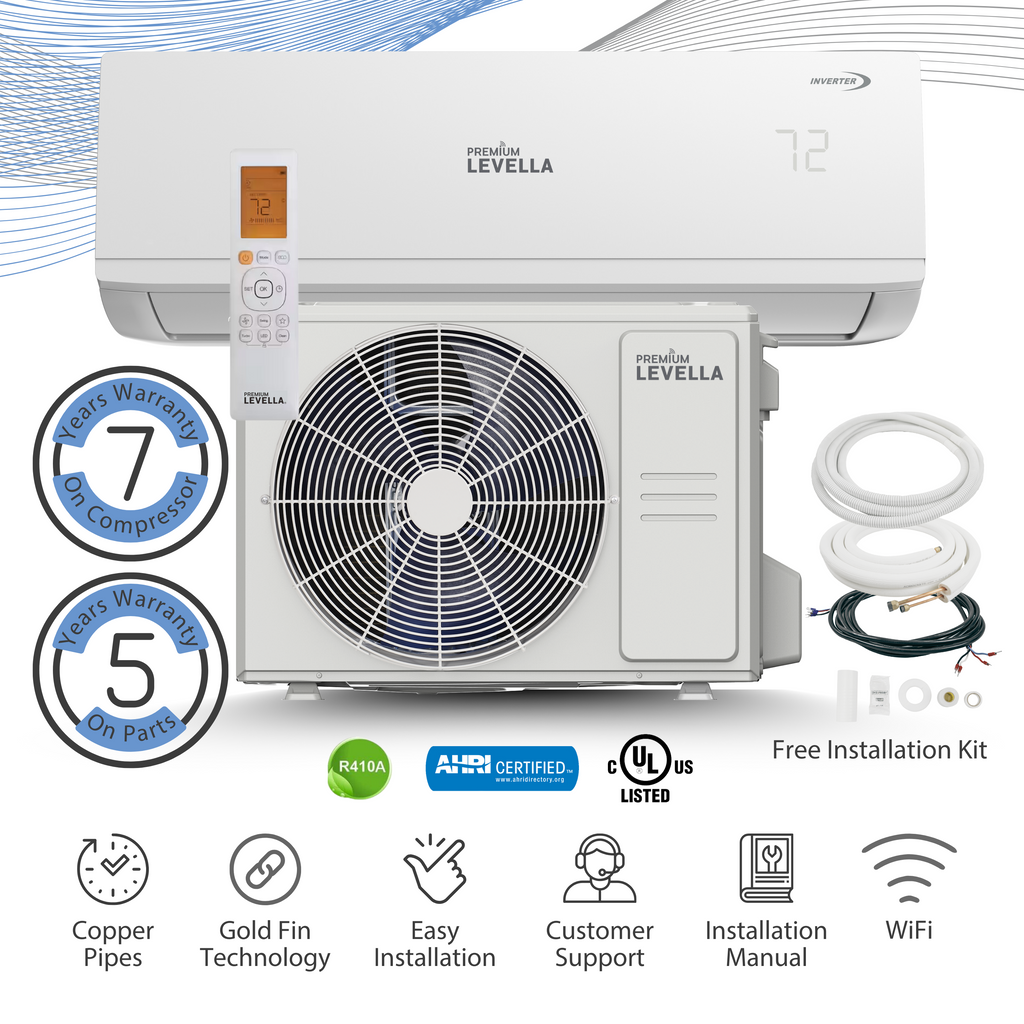

High Efficiency 25.5 SEER Series Inverter ductless mini split heat pump system
- Cooling capacity: 9,000 BTU/H with 26.40 SEER2 / 15.80 EER2 efficiency
- Heating capacity: 9,000 BTU/H with 11.60 HSPF2 / 2.50 COP2 efficiency
- Voltage: 208~230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Llength copper line set with flare connections
- Low Ambient Unit (5 F)
-
AHRI:
AHRI & ENERGY GUIDE
-
Estimated Annual Operating Costs:
ENERGY INFO
- Cooling Rated Capacity: 9000 BTU (3/4 Ton ~400 sqft )
- Cooling Capacity Range: 3,700~13,300 BTU/h
- Heating Rated Capacity: 9000 BTU (3/4 Ton ~400 sqft )
- Heating Capacity Range: 5,100~14,300 BTU/h
- Cooling SEER: 25.50
- Cooling SEER2: 26.40
- Cooling EER(A2): 18.80
- Cooling EER2(A Full): 15.80
- Heating HSPF (Region IV): 12.50
- Heating HSPF2 (Region IV): 11.60
- Power Supply: 208-230V~60Hz, 1Ph
- Pipe line: 1/4''-3/8''
- Refrigerant Type: R-410A
- Inverter: Yes
- Wifi: Yes
- Certifications: AHRI, UL
- Indoor unit:
- Model: PIAW932579A
- Gross weight: 24.95 LB
- Net weight: 18.96 LB
- Packing dimensions(WxDxH in): 34.45 x 11.22 x 14.96
- Product dimensions(WxDxH in): 31.57 x 7.87 x 11.61
- Pipe line: 1/4''-3/8''
- Anticorrosive: GoldFin
- Temperature display: F° & C°
- Sound Level (Hi/Med/Lo): 40/30/23 dB(A)
- Air Flow (Turbo/Hi/Med/Lo): 341/291/194/152 CFM
- Room Temperature COOL mode: 60.8～89.6°F
- Room Temperature HEAT mode: 32～86°F
- Room Temperature DRY mode: 50°F～90°F
- Outdoor unit:
- Model: PIAW932580B
- Gross weight: 80.85 LB
- Net weight: 74.07 LB
- Packing dimensions(WxDxH in): 36.02 x 14.57 x 24.21
- Product dimensions(WxDxH in): 31.69 x 12.99 x 21.81
- Pipe line: 1/4''-3/8''
- Anticorrosive: GoldFin
- Sound Level: 55.5 dB(A)
- Breaker Needed: 20A (double-pole)
- Outdoor Temperature COOL mode: -22°F～122°F
- Outdoor Temperature HEAT mode: -22°F～ 75.2°F
- Outdoor Temperature DRY mode: 50°F～90°F
Warranty
This comprehensive warranty is extended to you by Gonichea, the exclusive distributor of Premium Levella brand air conditioning
products throughout the United States. We are committed to ensuring your satisfaction and providing peace of mind with our high-
quality products.
While registration is not mandatory for the Basic Warranty, we strongly encourage you to register your product promptly to unlock the
full benefits of our Standard Warranty. You have a generous window of up to 60 days post-purchase to register your equipment. Failure
to register within this period will still grant you coverage for 1 to 5 years depending on the purchased product.
Standard Warranty: Premium Levella High Efficiency SEER2 Series Inverter ductless mini split heat pump system has 7 years warranty in compressor and 5 years warranty in parts.
Basic Warranty: 1 year warranty in compressor and 1 year warranty in parts. Applies when the system is not registered before 60 days post-purchase.
Warranty Policy:
https://www.gonichea.com/pages/warranty-policy
Product Registration:
https://www.gonichea.com/pages/product-registration
Manuals
User's Manual & Installation Manual
