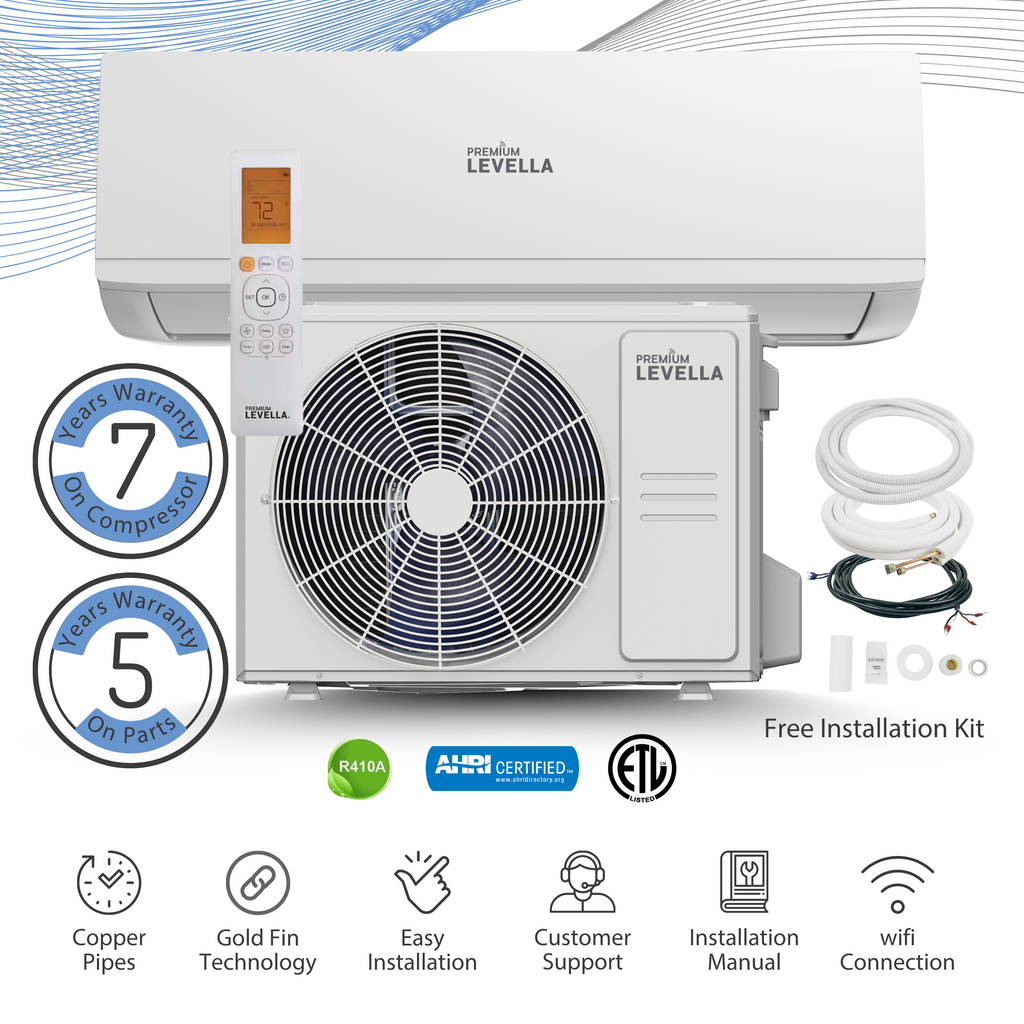

Premium Levella Mini Split – Powerful Cooling Made Simple
Stay cool during the hottest months with a system designed for efficient, reliable air conditioning. Premium Levella inverter mini splits combine high performance with energy savings, making them ideal for residential and commercial spaces.
With every unit you get:
-
Strong cooling capacity for lasting comfort
-
High efficiency operation to reduce energy costs
-
Quiet performance you’ll barely notice
-

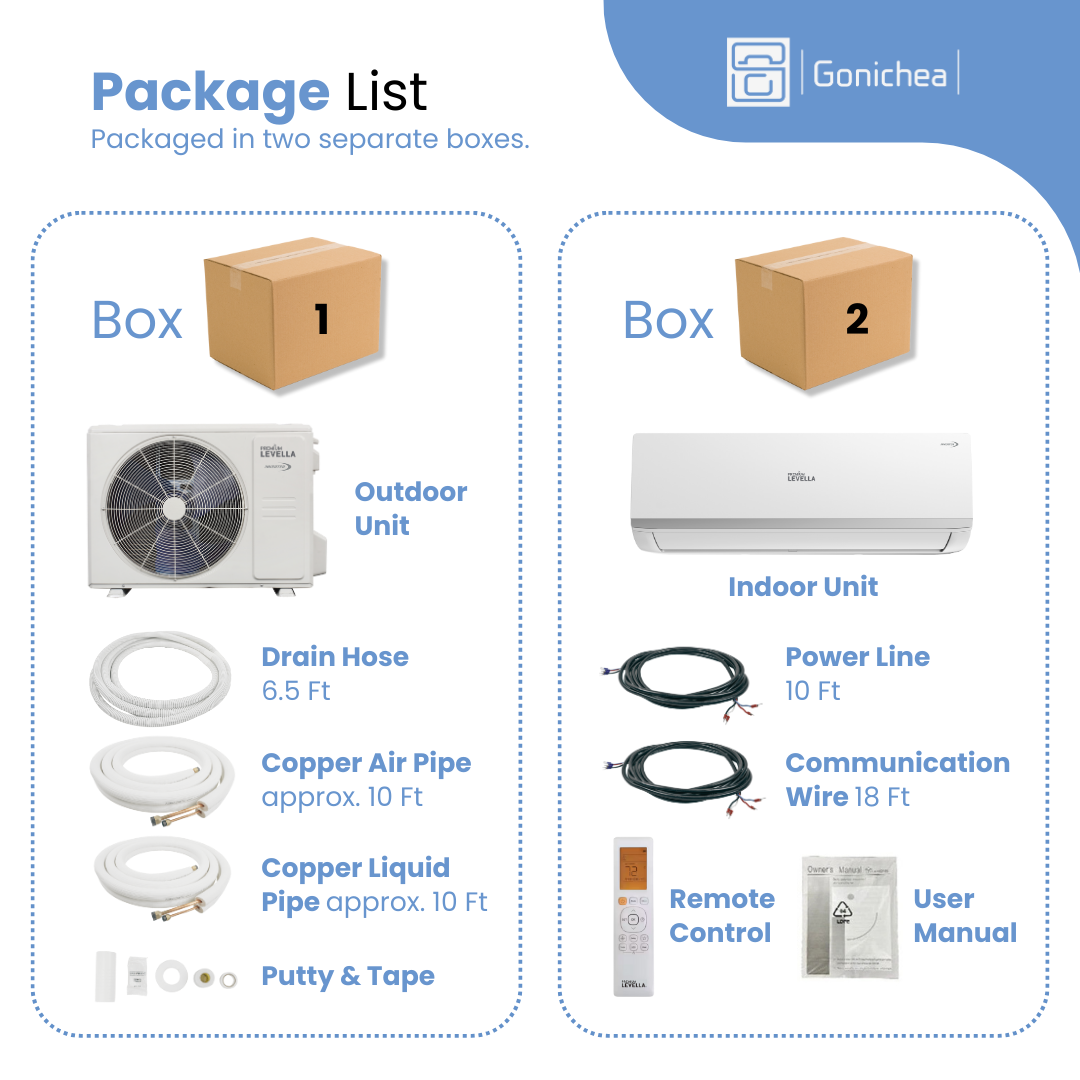

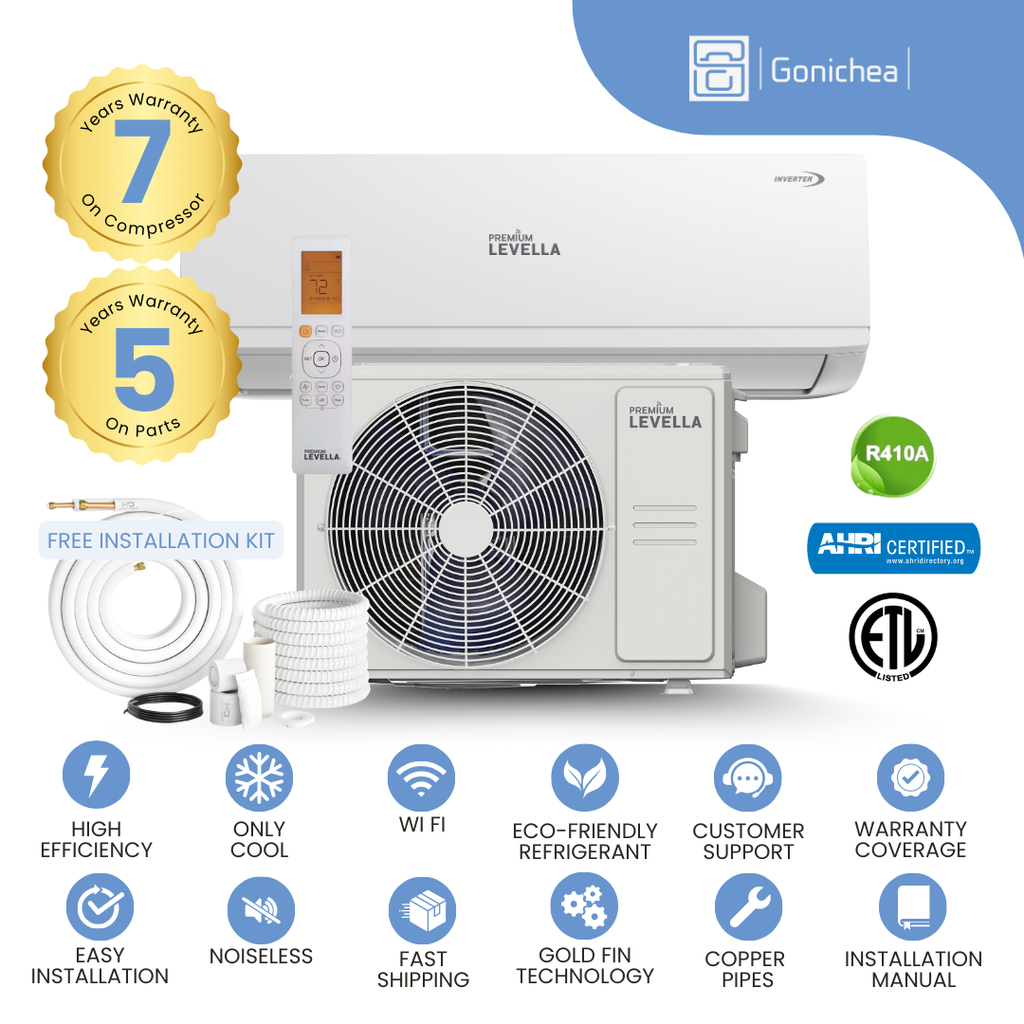

Easy installation with included kit
-
Trusted protection: up to 7 years warranty on compressor and 5 years on parts when registered
Choose Premium Levella and enjoy a powerful cooling solution that’s built to last.
Sold by Gonichea , the exclusive distributor of Premium Levella brand air conditioning products throughout the United States.
Summary
- Brand: Premium Levella
- Model: PIAW2401725TX
-
High-efficiency inverter 18 SEER2 series

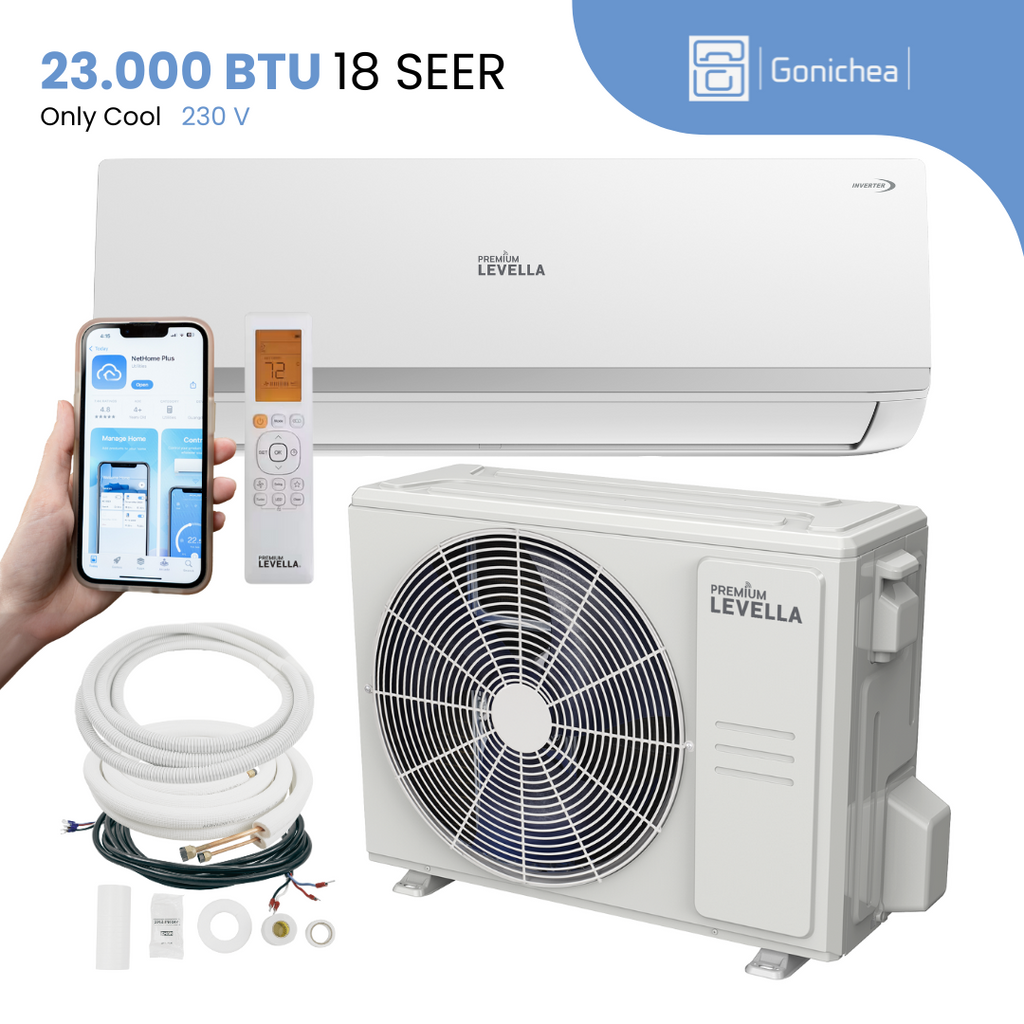

- Cooling capacity: 23,000 BTU/H with 18 SEER2 / 9.5 EER2 efficiency
- Voltage: 208~230 V, 60 Hz, single phase
-
High wall air conditioner
- Variable speed DC inverter operating mode
-
Full length copper line set with flare connections
-
Low ambient temperature unit (5 F)
-
AHRI:
AHRI AND ENERGY GUIDE
-
Estimated Annual Operating Costs:
ENERGY INFORMATION
- Nominal Cooling Capacity: 23,000 BTU (~2 tons ~ 1,000 sq ft)
- Cooling capacity range: 4090 ~ 24,900 BTU/h
- Cooling SEER: 17.00
- SEER2 Cooling: 18.00
- Cooling EER(A2): 9.60
- Cooling EER2 (Full A): 9.50
- Power supply: 208-230 V~60 Hz, single-phase
- Pipe line: 1/4''-1/2''
- Refrigerant Type: R-410A
- Investor: Yes
- Wifi: Yes
- Certifications: AHRI, ETL

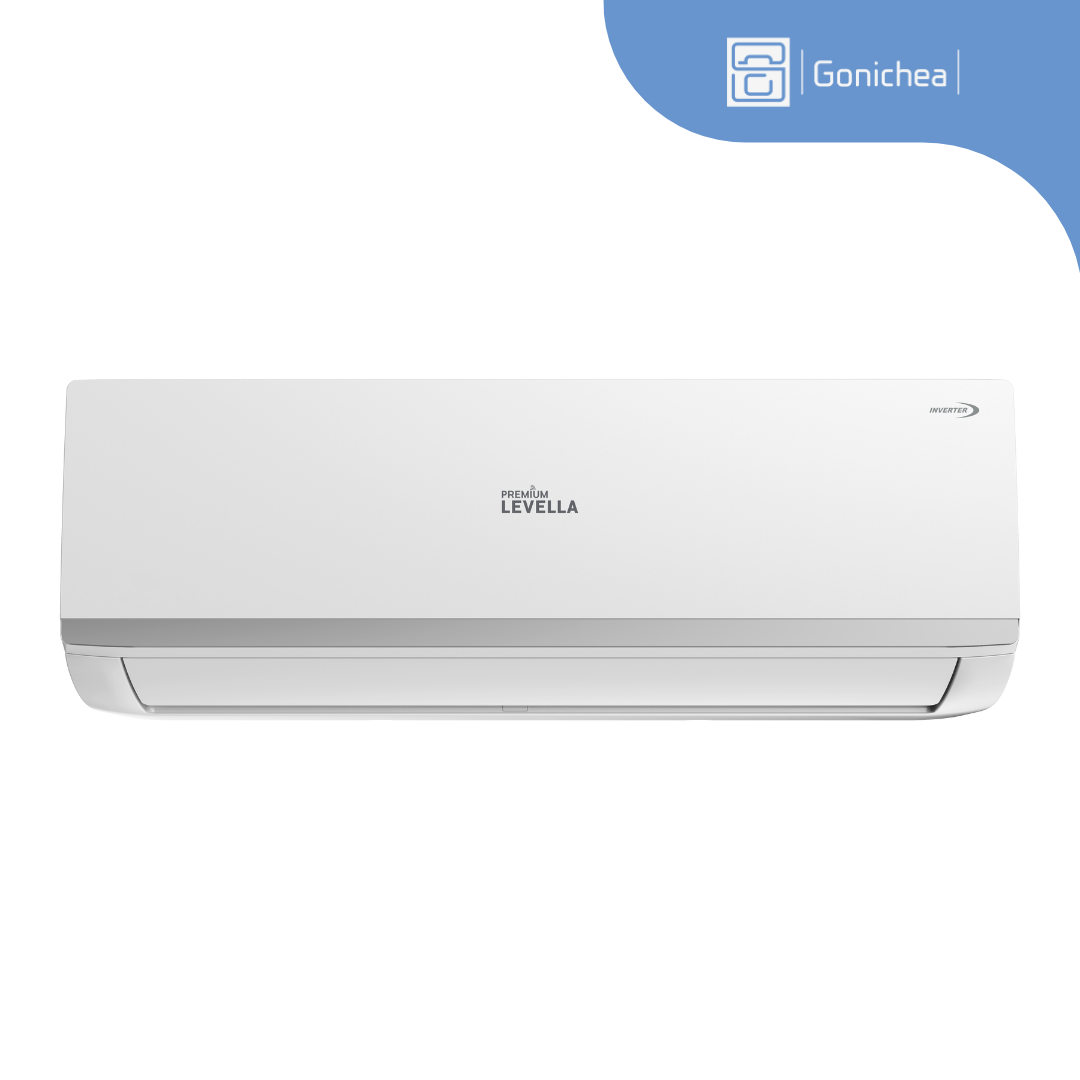

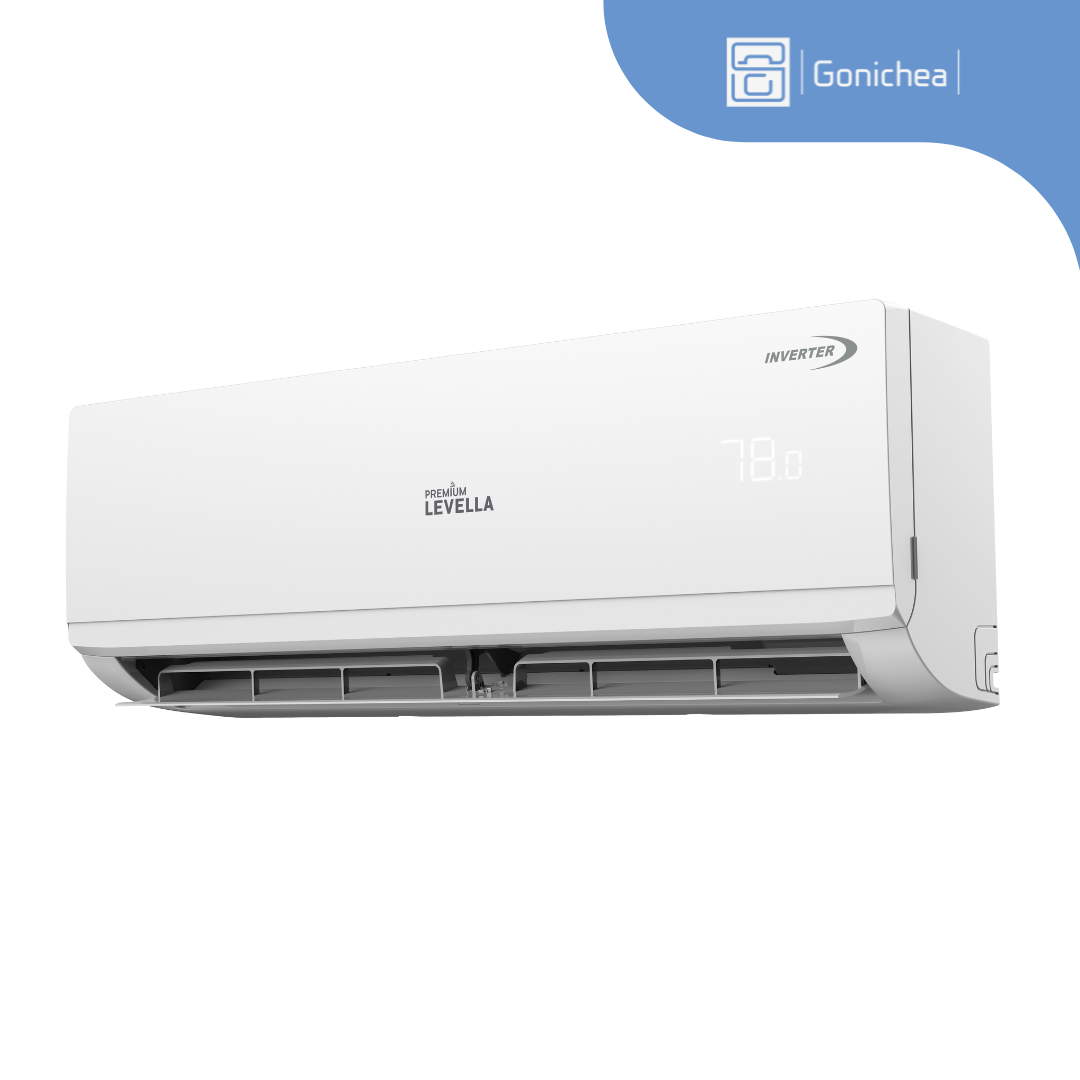

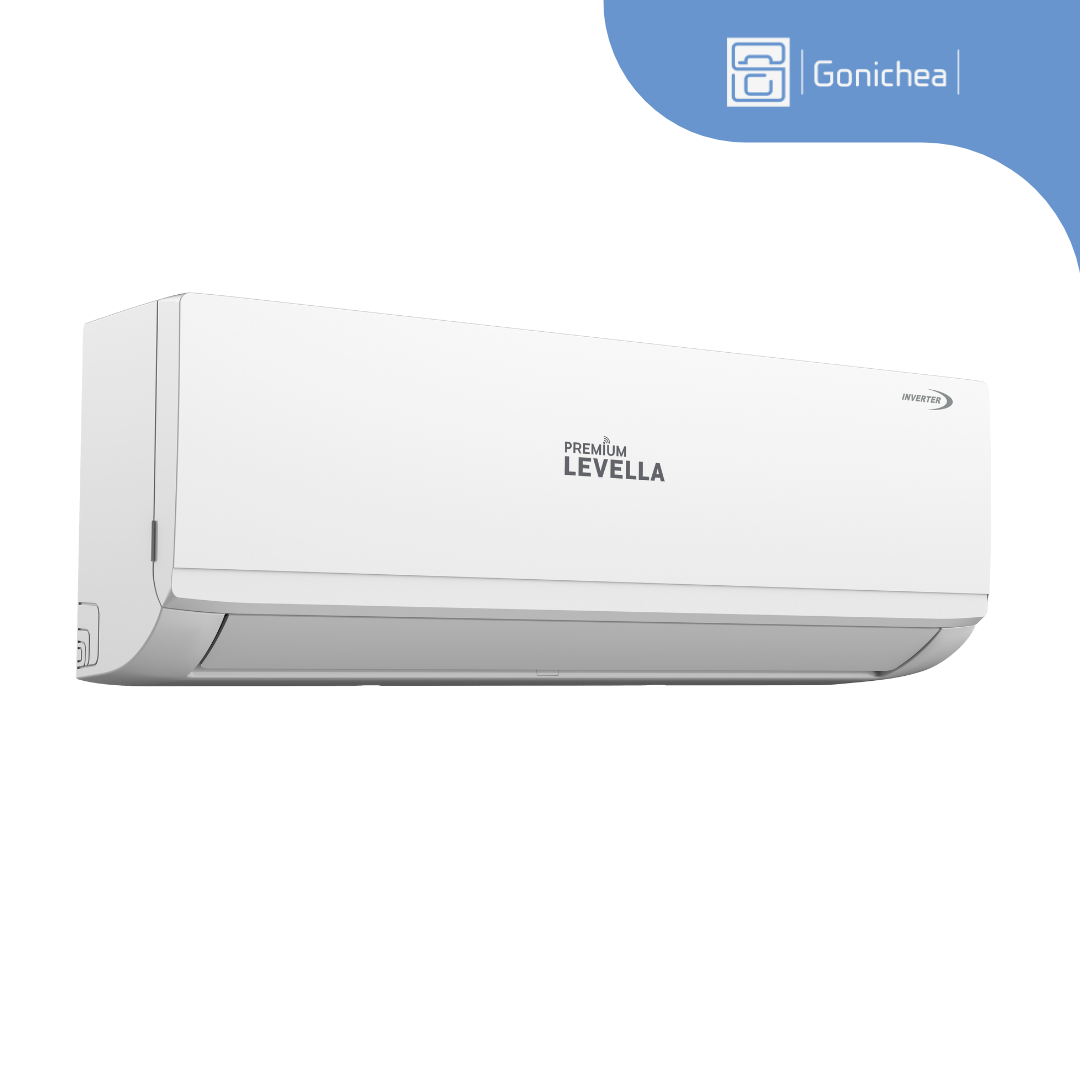

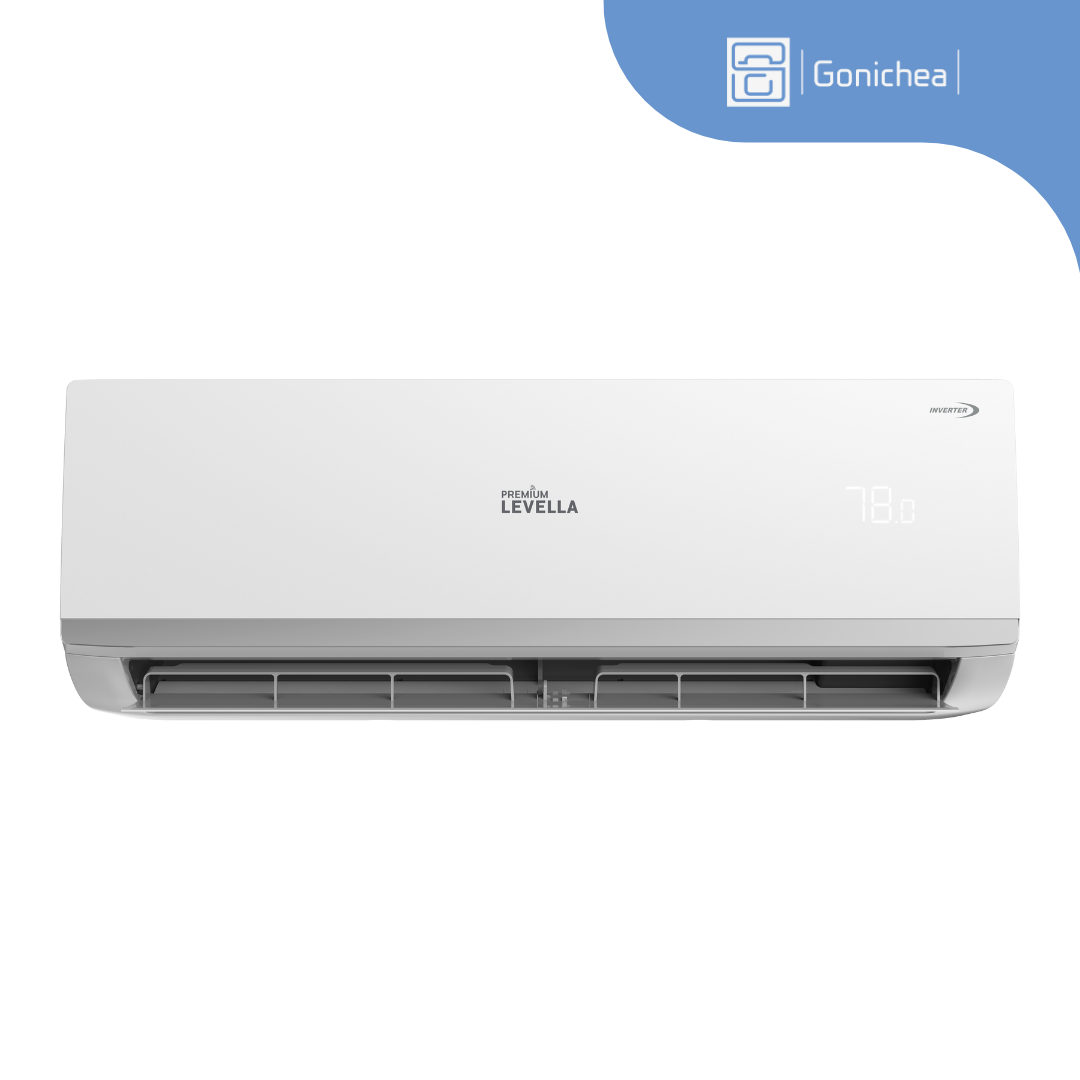

Indoor unit:
- Model: PIAW2401724TA
- Gross Weight: 31.96 LB
- Net weight: 25.35 LB
- Packaging Dimensions (W x D x H in inches): 43.14 x 14.56 x 11.69

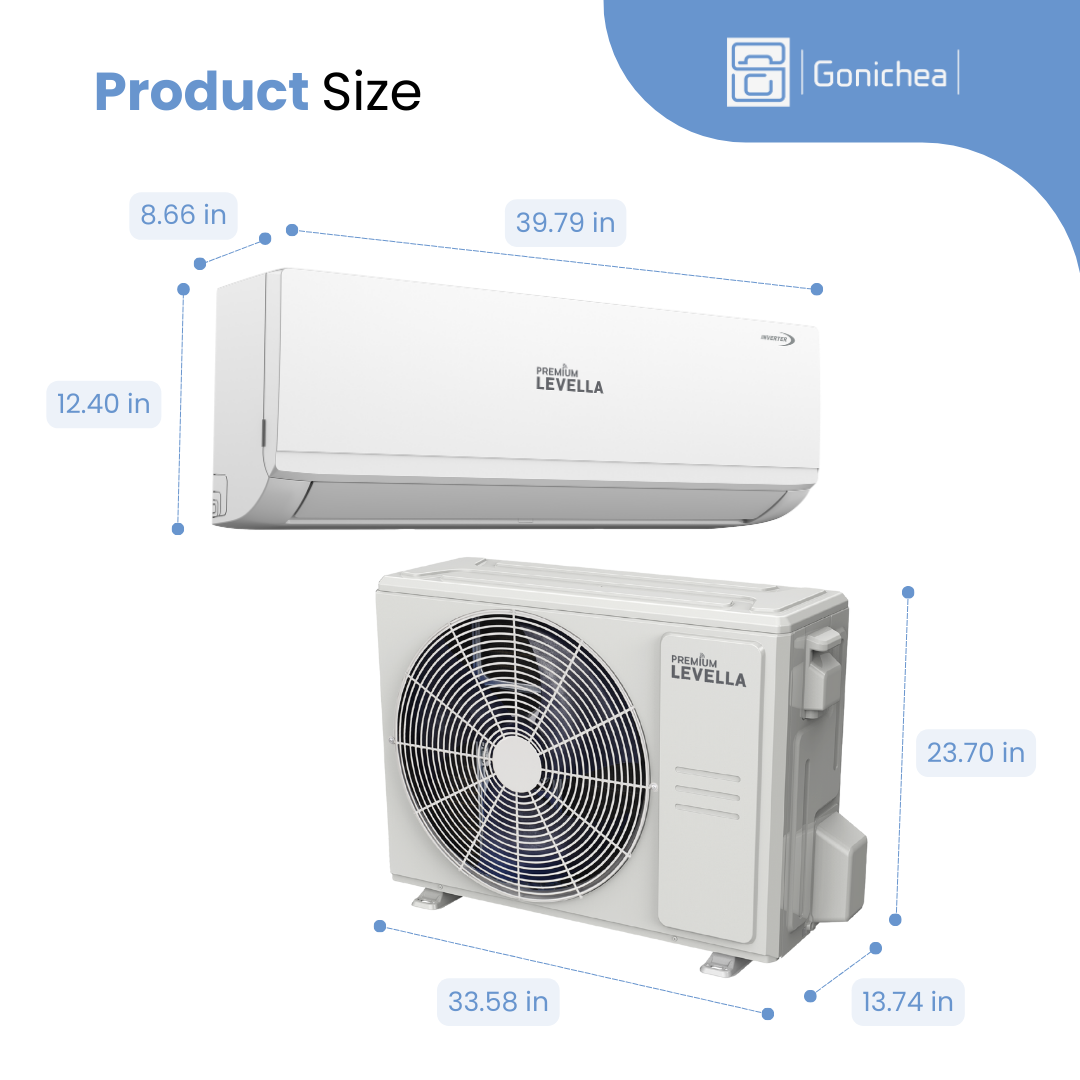

- Product Dimensions (W x D x H in inches): 39.79 x 12.40 x 8.66
- Pipe line: 1/4''-1/2''

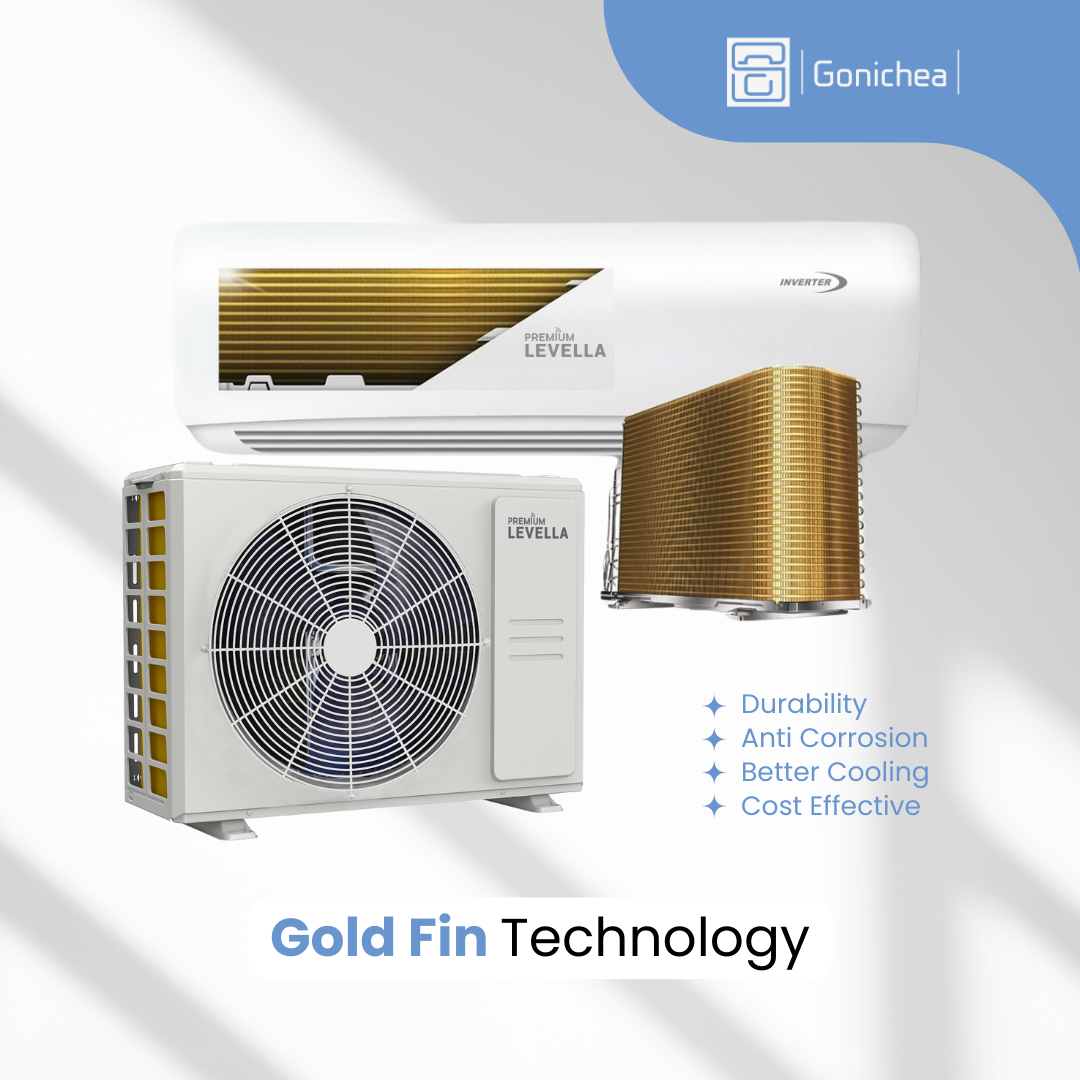

- Anti-corrosive: GoldFin
- Temperature display: F° and C°
- Sound level (high/medium/low): 49/45/41 dB(A)
- Airflow (Turbo/High/Medium/Low): 333/253/231/211 CFM
- Room Temperature COOL Mode: 5°F ～ 86°F
- SECO mode at room temperature: 50°F ～ 90°F

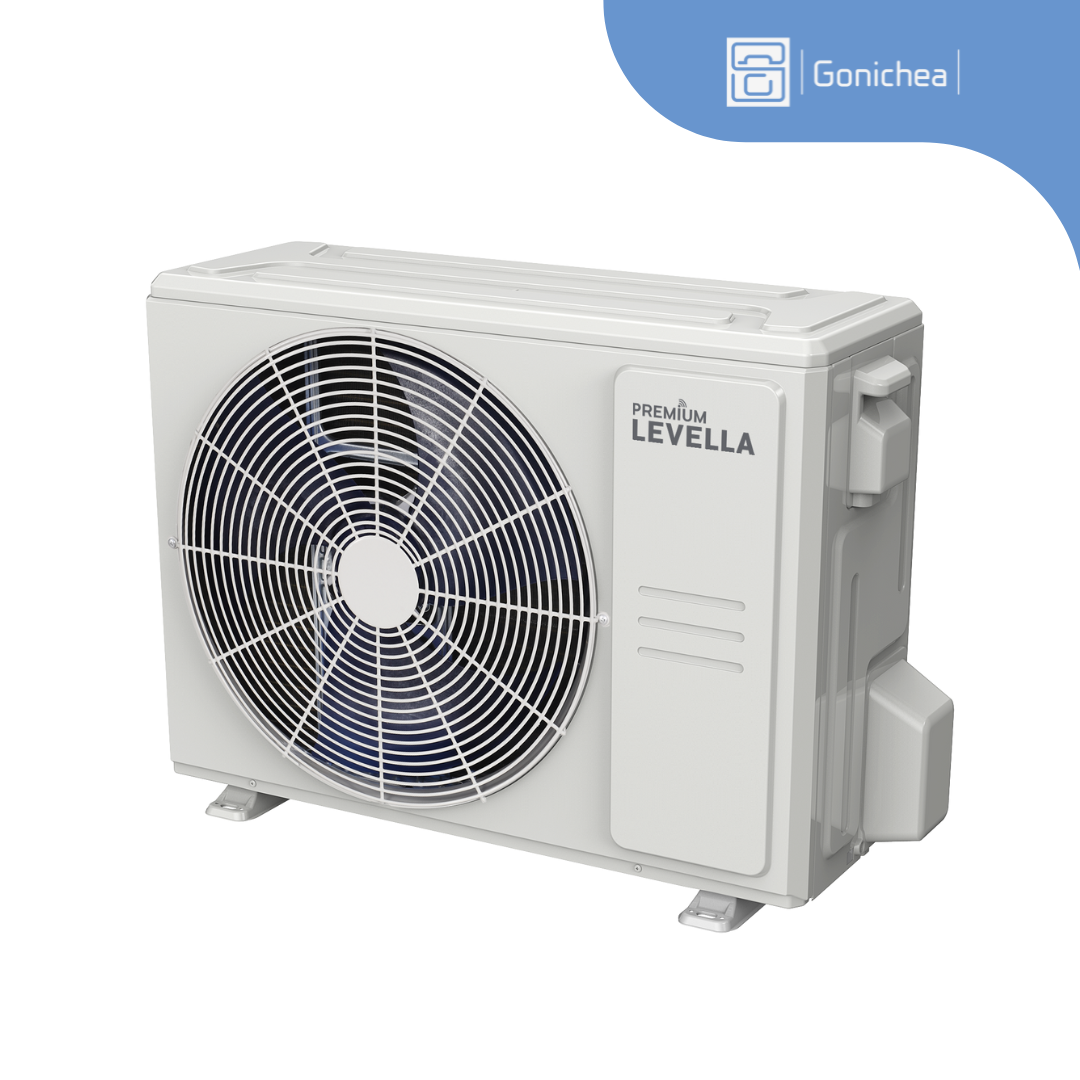

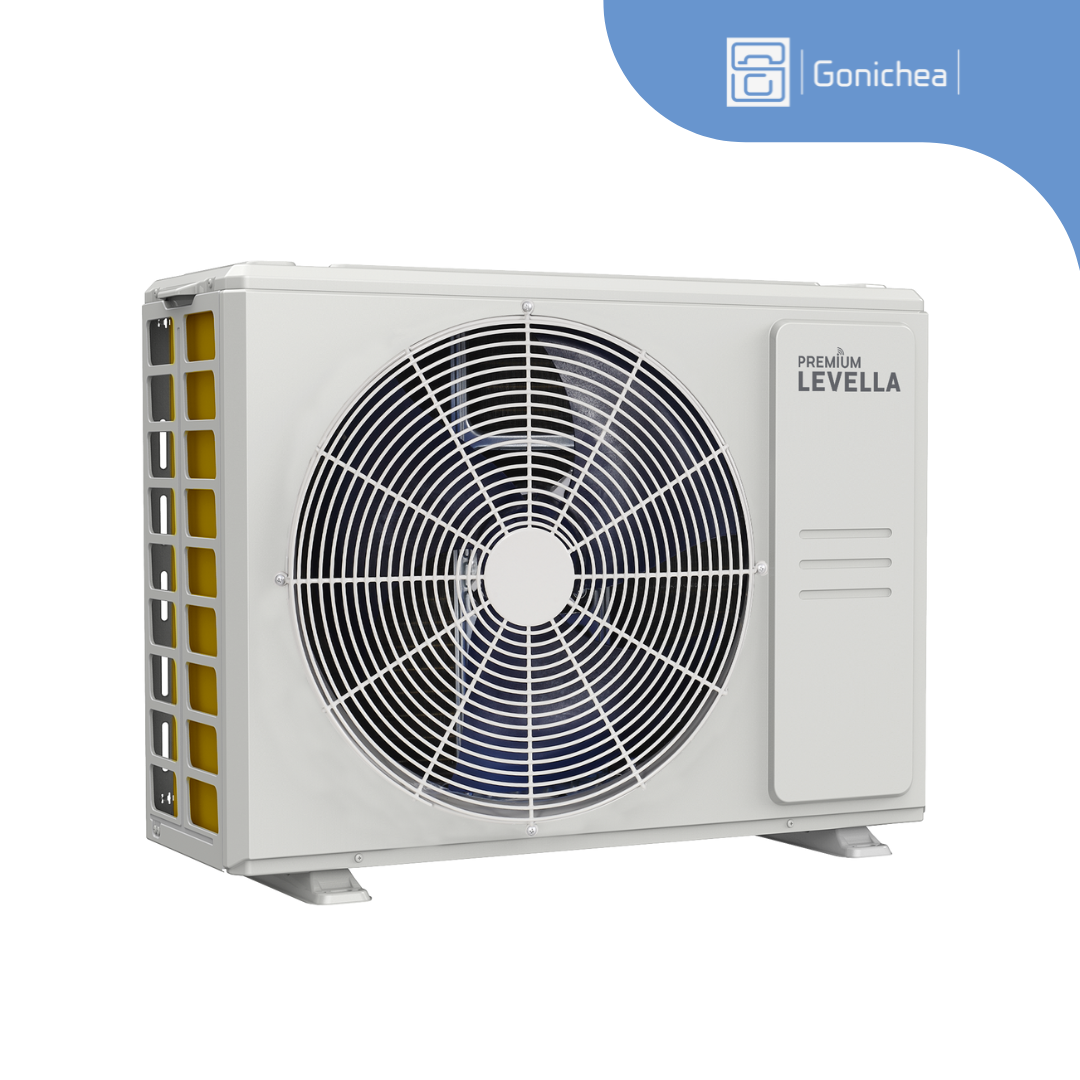

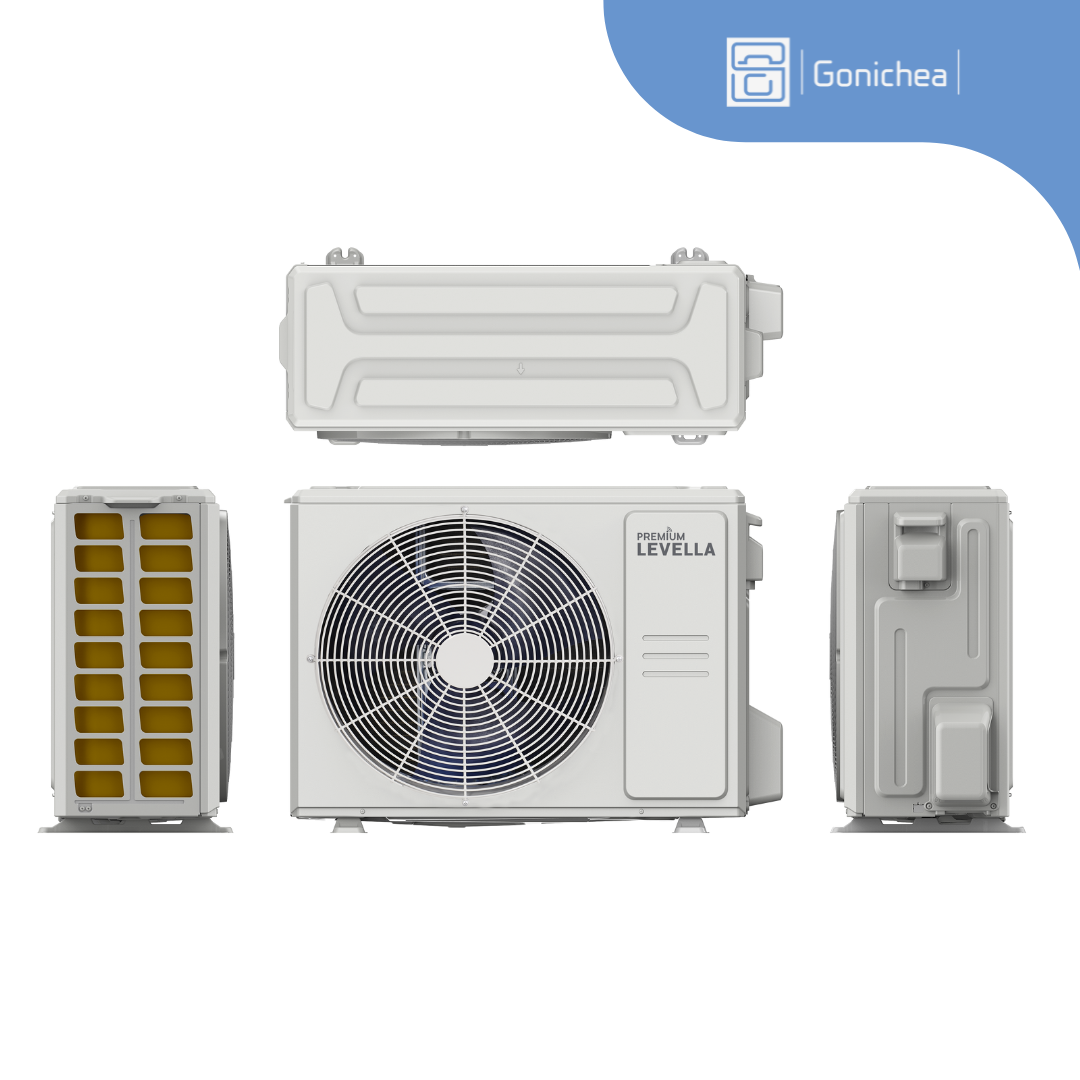

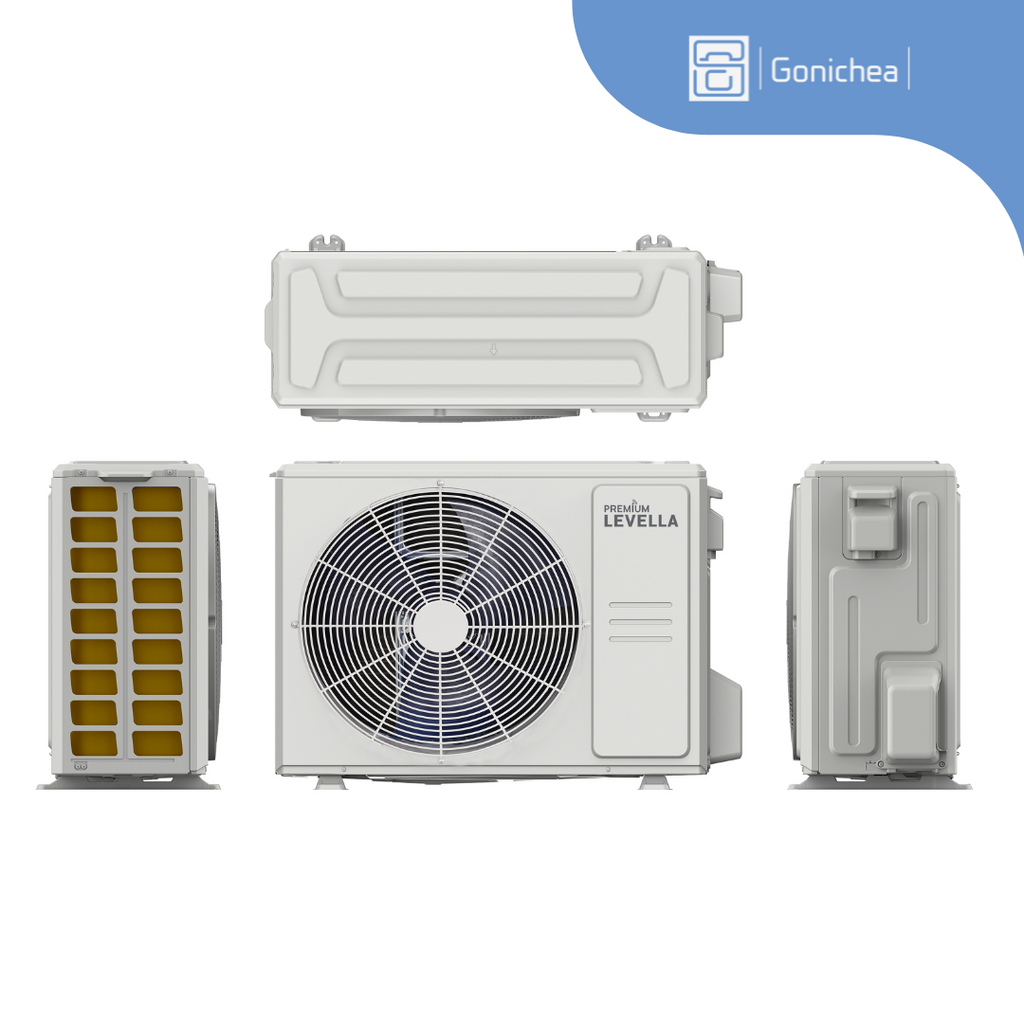

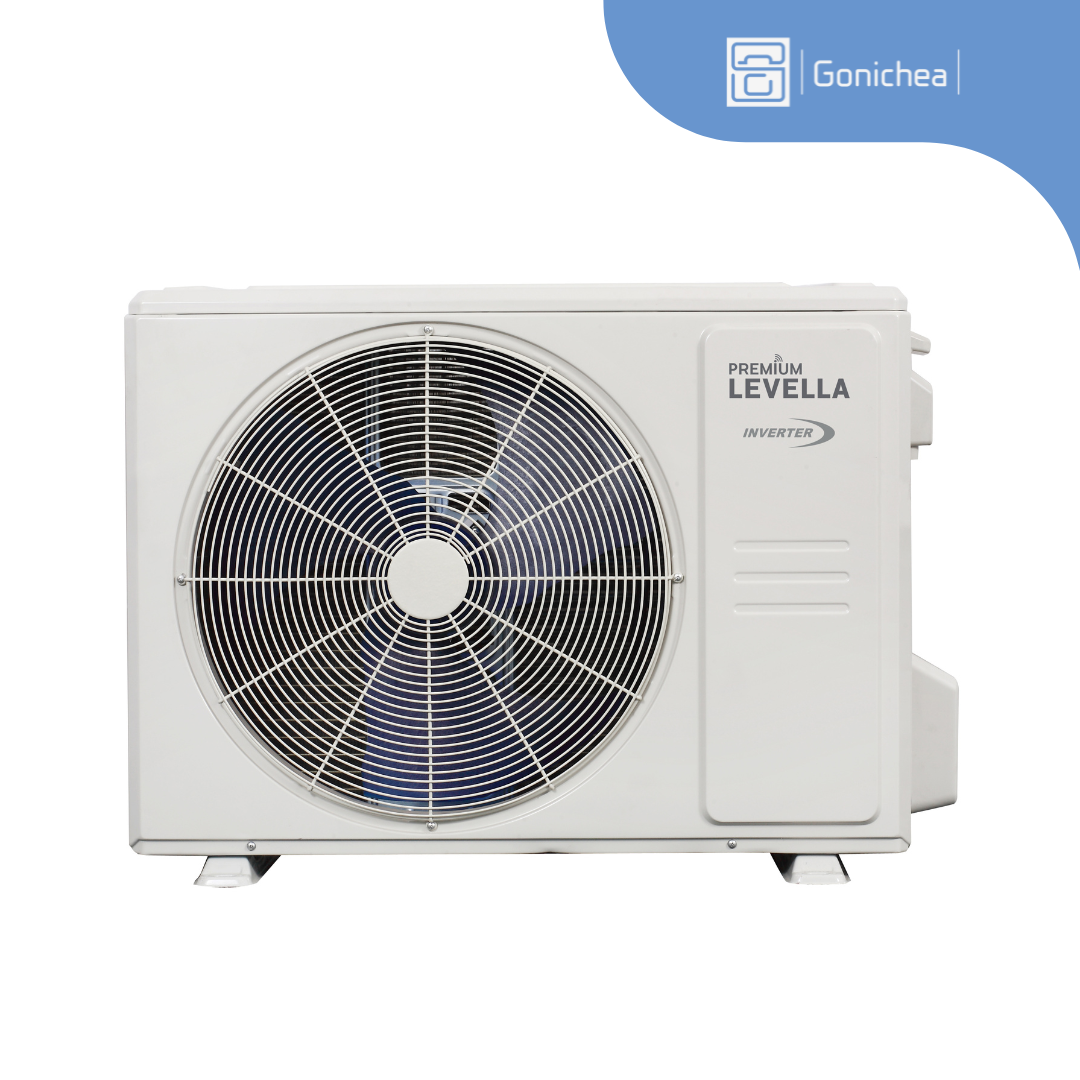

Outdoor unit:
- Model: PIAW2401725TB
- Gross Weight: 77.16 LB
- Net weight: 68.34 LB
- Packaging Dimensions (W x D x H in inches): 35.43 x 15.94 x 25.39
- Product Dimensions (W x D x H in inches): 33.58 x 13.74 x 23.70
- Pipe line: 1/4''-1/2''
- Anti-corrosive: GoldFin
- Sound level: 54 dB(A)
- Circuit breaker required: 20 A (2-pole)
- Outdoor temperature COOL mode: 5 °F ～ 86 °F
- Outdoor temperature DRY mode: 50 °F ～ 90 °F
Warranty Coverage
Gonichea, the exclusive distributor of premium Levella air conditioning products in the United States, offers you this comprehensive warranty. We are committed to ensuring your satisfaction and providing peace of mind with our high-quality products.
Although registration is not mandatory for the Basic Warranty, we strongly recommend that you register your product as soon as possible to enjoy the full benefits of our Standard Warranty. You have up to 60 days after purchase to register your equipment. If you don't register it within this timeframe, coverage will continue for 1 to 5 years, depending on the product purchased.
Standard Warranty : The Levella Premium SEER2 High Efficiency Inverter Ductless Mini Split has a 7-year compressor warranty and a 5-year parts warranty.
Basic Warranty : 1-year compressor warranty and 1-year parts warranty. Applies if the system is not registered within 60 days of purchase.
Warranty Policy
https://www.gonichea.com/pages/politica-de-garantia
Product registration
https://www.gonichea.com/pages/registro-de-producto/
Manuals
User manual and installation manual
