Premium Levella Mini Split – Powerful Cooling Made Simple
Stay cool during the hottest months with a system designed for efficient, reliable air conditioning. Premium Levella inverter mini splits combine high performance with energy savings, making them ideal for residential and commercial spaces.
With every unit you get:
-
Strong cooling capacity for lasting comfort
-
High efficiency operation to reduce energy costs
-
Quiet performance you’ll barely notice
-

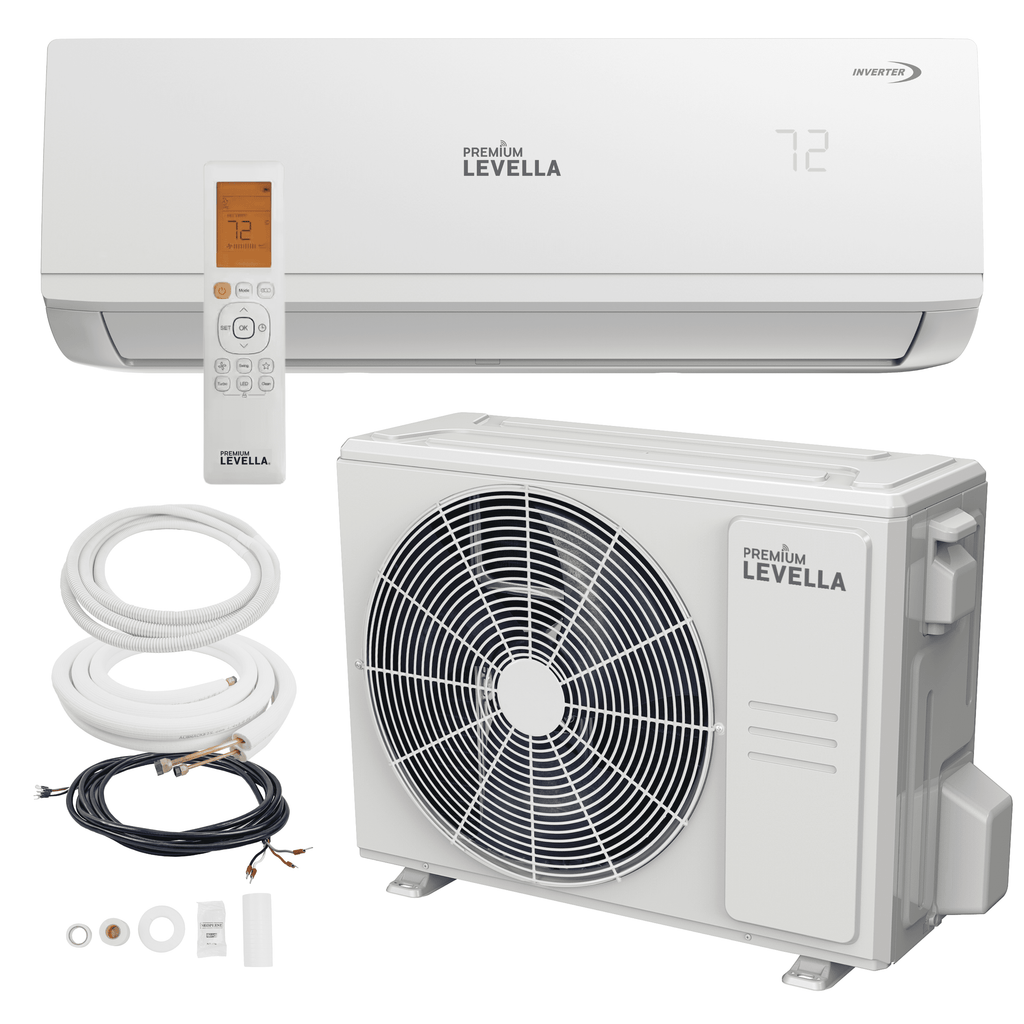

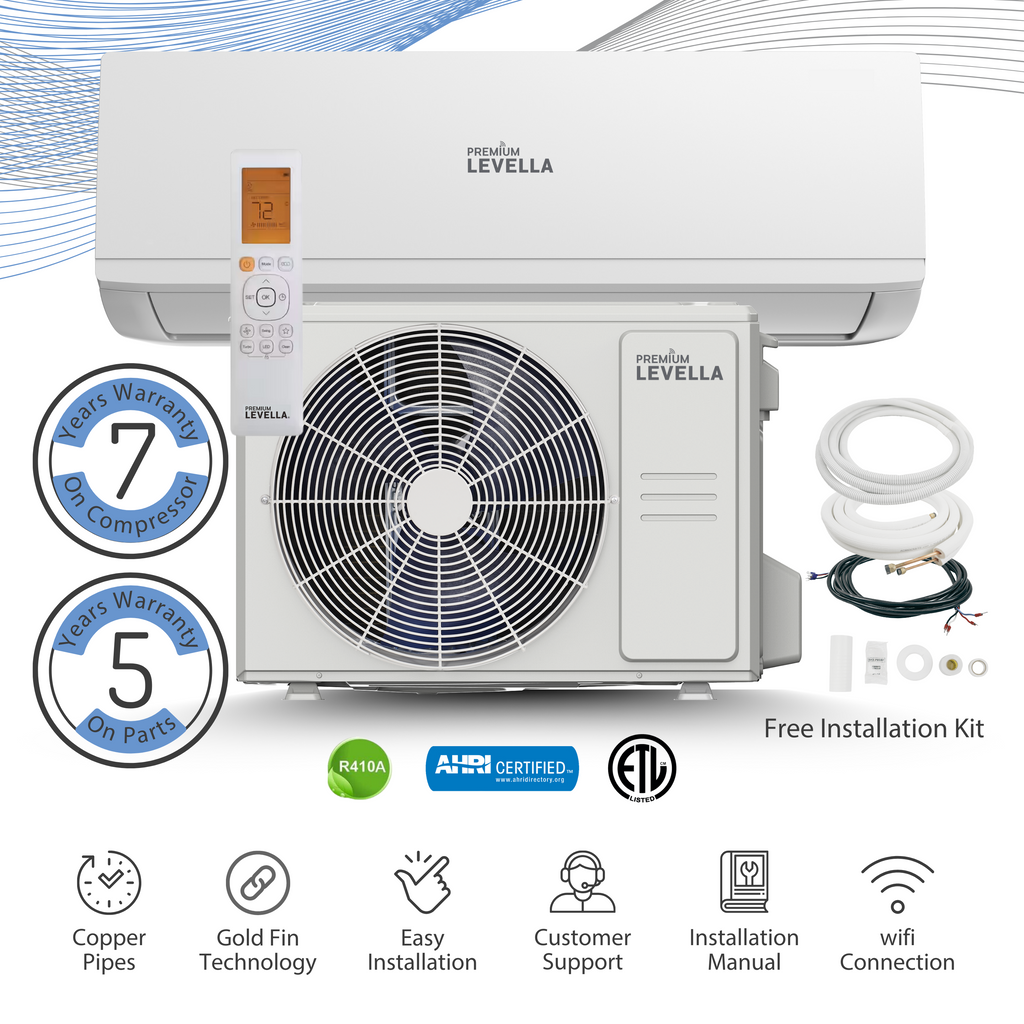

Easy installation with included kit
-
Trusted protection: up to 7 years warranty on compressor and 5 years on parts when registered
Choose Premium Levella and enjoy a powerful cooling solution that’s built to last.
Sold by Gonichea, the exclusive distributor of Premium Levella brand air conditioning products throughout the United States.
Summary
- Brand: Premium Levella
- Model: PIAW1201717TX
-
High Efficiency Series Inverter ductless mini split system
- Cooling capacity: 11,500 BTU/H with 16 SEER2 / 9.0 EER2 efficiency
- Voltage: 108~120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning System
- Variable Speed DC Inverter Operation Mode
- Llength copper line set with flare connections
- Low Ambient Unit (5 F)
-
AHRI:
AHRI & ENERGY GUIDE
-
Estimated Annual Operating Costs:
ENERGY INFO
- Cooling Rated Capacity: 11500 BTU (~1 Ton ~500 sqft )
- Cooling Capacity Range: 2,050~12,625 BTU/h
- Cooling SEER: 16.00
- Cooling SEER2: 16.00
- Cooling EER(A2): 9.00
- Cooling EER2(A Full): 9.00
- Power Supply: 115V~60Hz, 1Ph
- Pipe line: 1/4''-3/8''
- Refrigerant Type: R-410A
- Inverter: Yes
- Wifi: Yes
- Certifications: AHRI, ETL

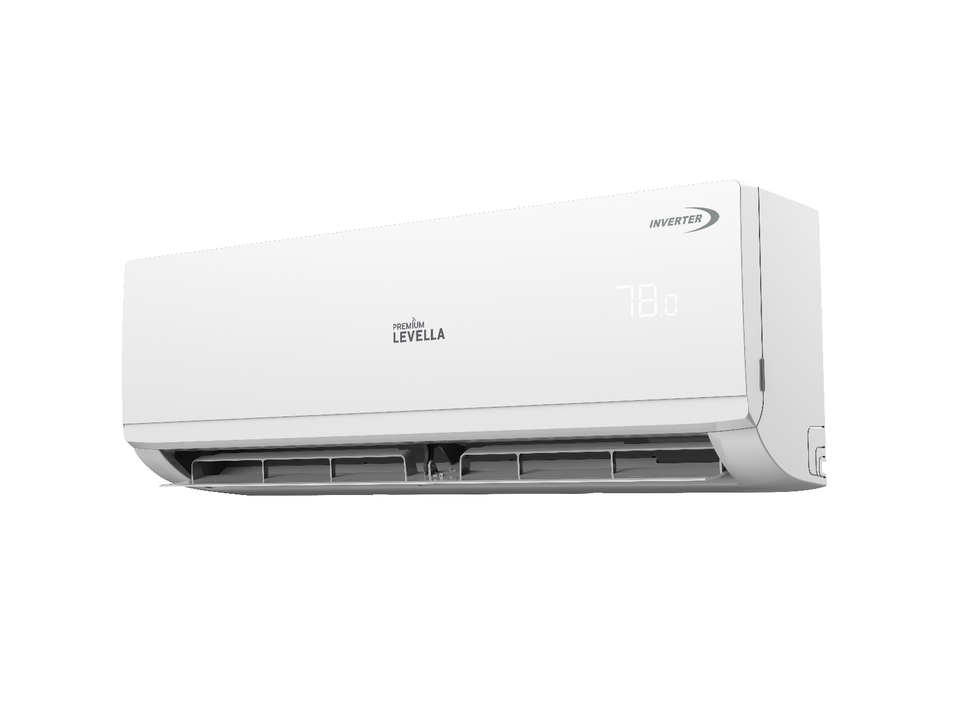

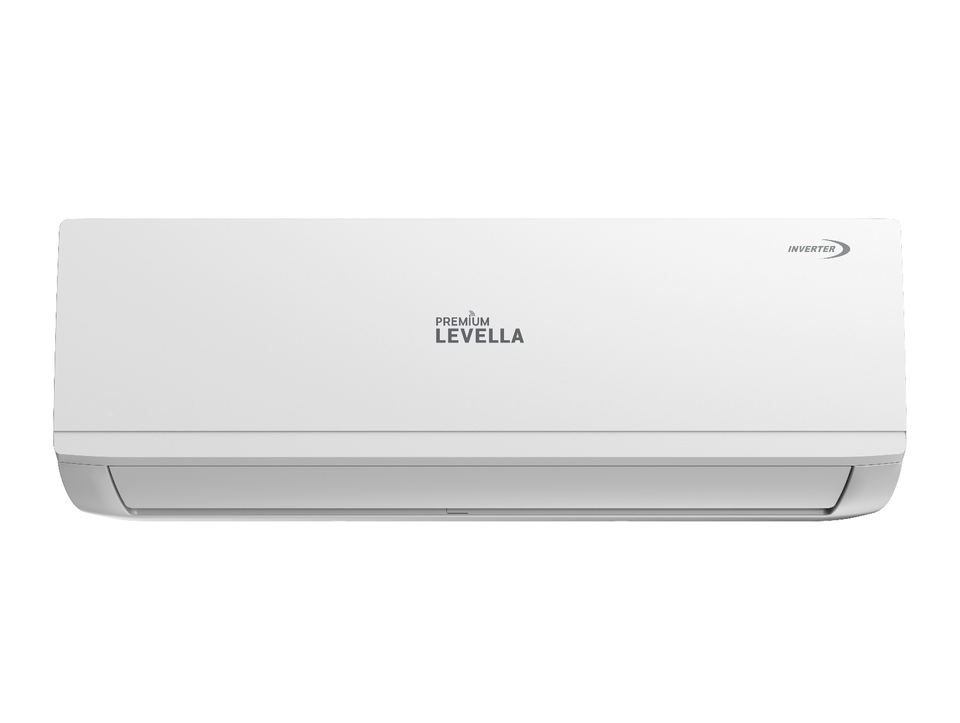

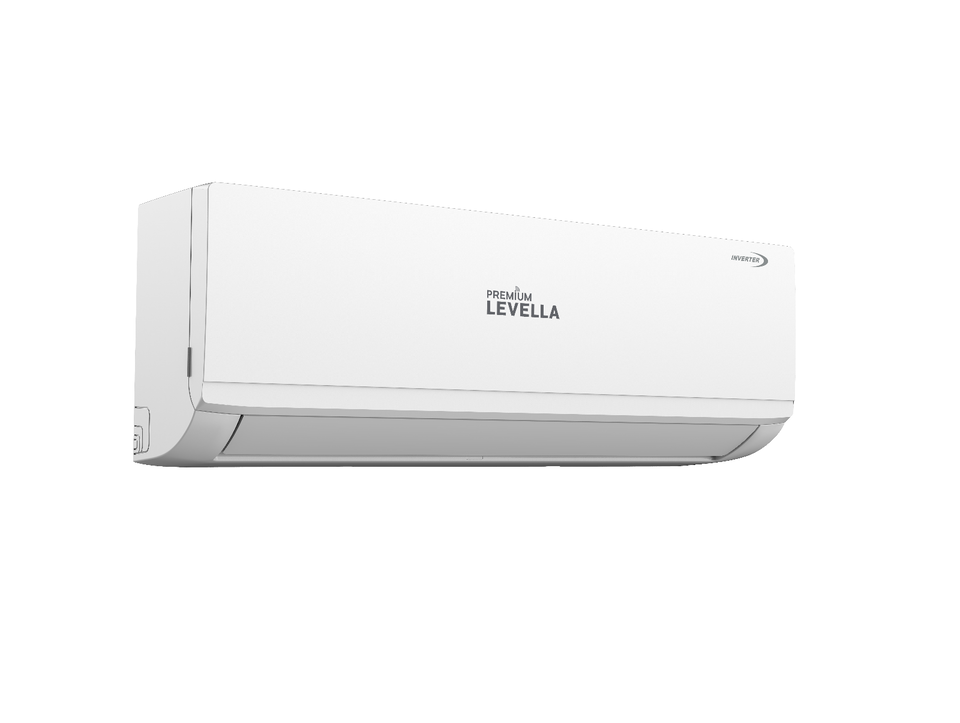

Indoor unit:
- Model: PIAW1201716TA
- Gross weight: 22.04 LB
- Net weight: 17.63 LB
- Packing dimensions(WxDxH in): 33.07 x 12.40 x 10.23
- Product dimensions(WxDxH in): 30.59 x 11.20 x 9.85
- Pipe line: 1/4''-3/8''

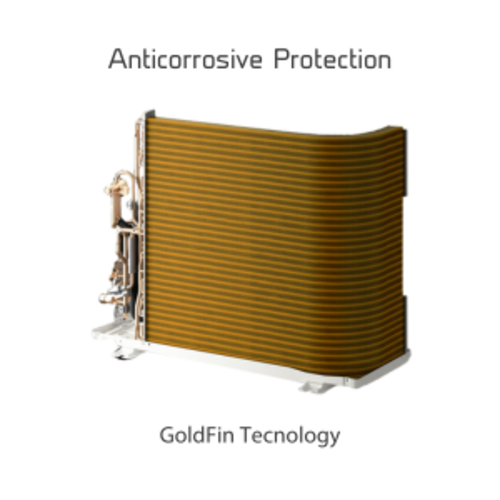

- Anticorrosive: GoldFin
- Temperature display: F° & C°
- Sound Level (Hi/Med/Lo): 38/34/30 dB(A)
- Air Flow (Turbo/Hi/Med/Lo): 420/382/324//265 CFM
- Room Temperature COOL mode: 5°F - 122°F
- Room Temperature DRY mode: 50°F - 90°F

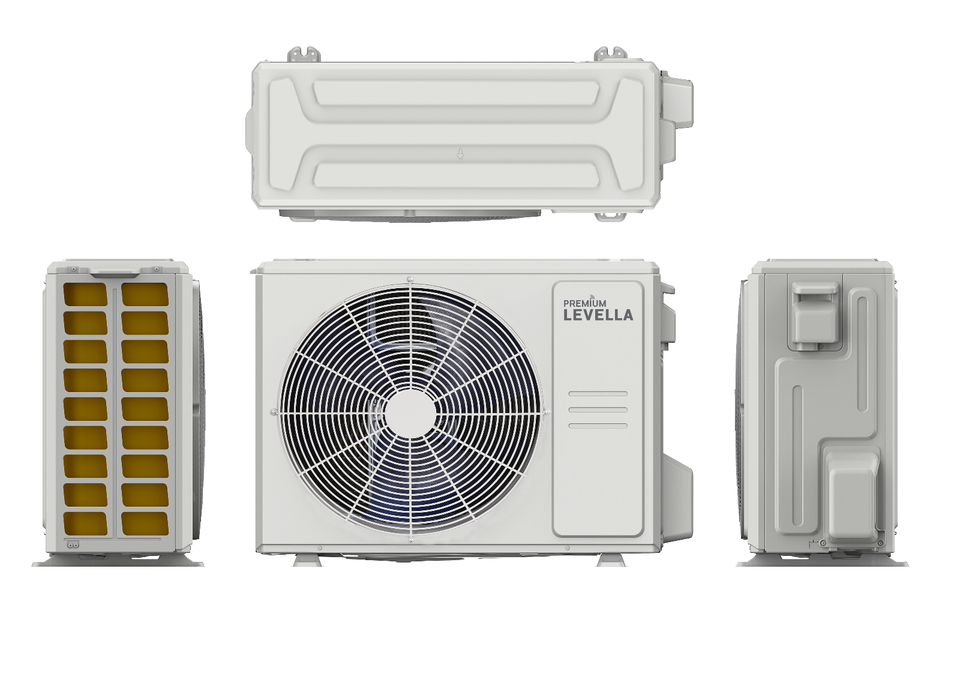

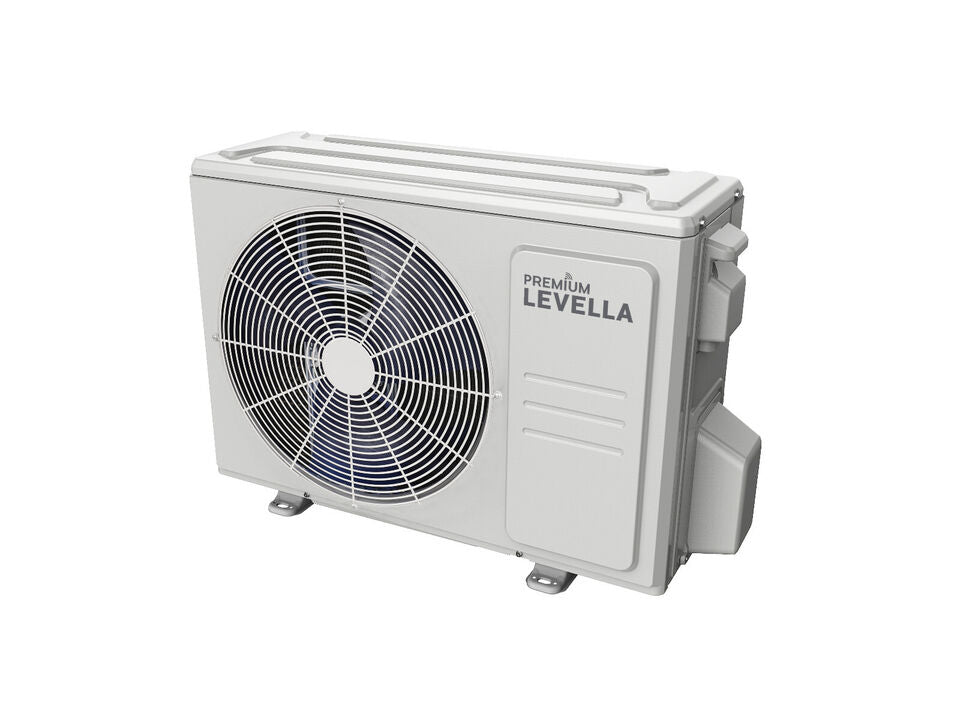

Outdoor unit:
- Model: PIAW1201717TB
- Gross weight: 50.70 LB
- Net weight: 46.30 LB
- Packing dimensions(WxDxH in): 32.87 x 11.81 x 12.50
- Product dimensions(WxDxH in): 28.34 x 10.62 x 10.23
- Pipe line: 1/4''-3/8''
- Anticorrosive: GoldFin
- Sound Level: 52 dB(A)
-
Breaker Needed: 20A (single-pole)
- Outdoor Temperature COOL mode: 5°F～86°F
- Outdoor Temperature DRY mode: 50°F～90°F
Warranty Coverage
This comprehensive warranty is extended to you by Gonichea, the exclusive distributor of Premium Levella brand air conditioning products throughout the United States. We are committed to ensuring your satisfaction and providing peace of mind with our high-quality products.
While registration is not mandatory for the Basic Warranty, we strongly encourage you to register your product promptly to unlock the full benefits of our Standard Warranty. You have a generous window of up to 60 days post-purchase to register your equipment. Failure to register within this period will still grant you coverage for 1 to 5 years depending on the purchased product.
Standard Warranty: Premium Levella High Efficiency SEER2 Series Inverter ductless mini split has 7 years warranty in compressor and 5 years warranty in parts.
Basic Warranty: 1 year warranty in compressor and 1 year warranty in parts. Applies when the system is not registered before 60 days post-purchase.
